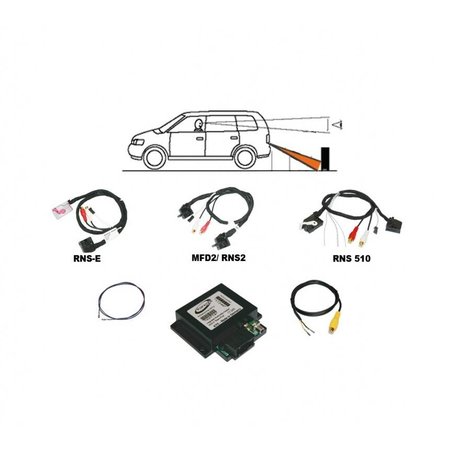

Rear View Camera - "Universal" Interface - Audi/VW - RNS 510/315
- Rear view camera interface to retrofit a universal rear view camera (NTSC)
- The area behind the vehicle will be displayed on the screen of the original head unit
- No installation of an addititional screen is neccessary!
- Suitable for original head units as follows:
- Volkswagen RNS 510
- Volkswagen RNS 315
- Skoda Columbus (identical RNS 510)
- Skoda Amundsen+ (identical RNS 315)
- NOTE VW T5 GP (from 2010) - For vehicles with OPS on the BACK (optical parking system on the back) the OPS function get lost - no limitations for vehicles with OPS on the BACK and FRONT
- No display of guiding lines and fields on the screen of the head unit
- Easy installation due to automatic head unit detection
- Auto switch to rear view cam by choosing the rear gear*
Specifications - Interface
| Power supply | 12 Volt (10 - 15 Volt) |
| Power input | 170 - 190 mA |
| Standby current | 4 - 6 mA |
| Dimensions in mm | 99 x 96.5 x 23 |
| Approval | E13 10R-02-9578 |
Scope of delivery:
- RVC Interface
- Wiring
- Video loom
- Auto switch loom (only for Audi A3 8P, A4 8E, TT 8J RNS-E / VW MFD 2, RNS 2)
Notes:
- Only suitable for an NTSC camera
- * In case of headunit RNS-E the auto switch is limited to Audi A3 8P, A38PA, A3 Cabriolet, A4 8E, TT 8J.
- To retrofit an original Audi or VW camera you will need additional wiring: Part No. 36136
- Not suitable for vehicles with factory fitted TV
