Audi
Rear View Camera - "Universal" Bundle - Audi/VW

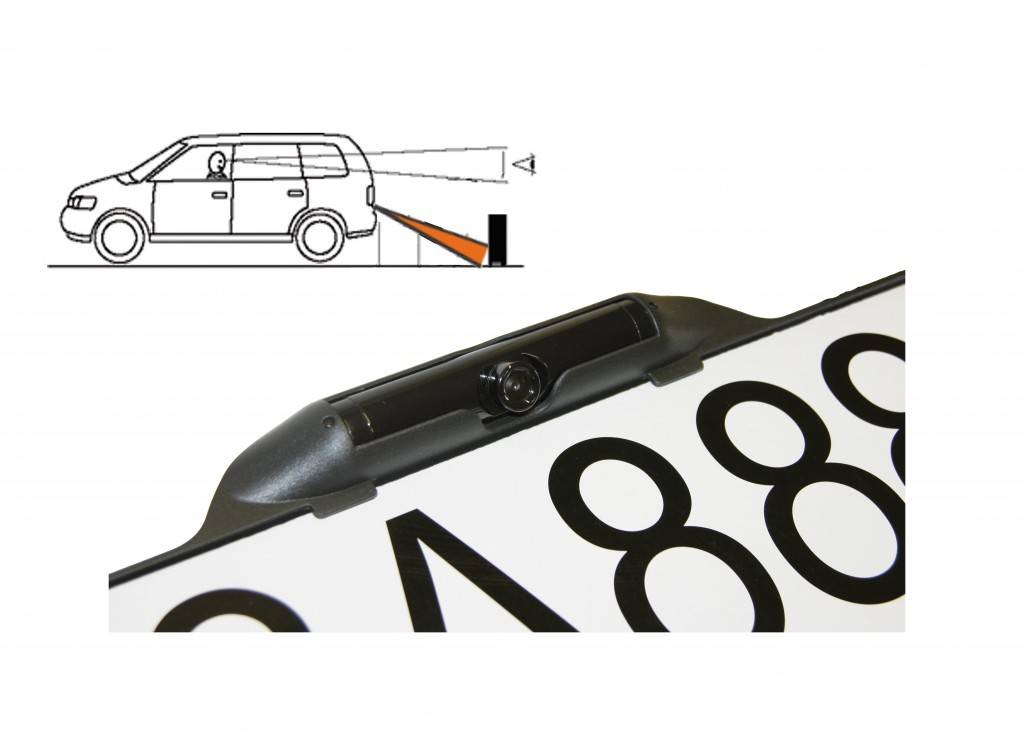

- Rear view camera bundle including integrated camera with EU-numberplate
- The area behind the vehicle will be displayed on the screen of the original head unit
- No installation of an addititional screen is neccessary!
- Suitable for original head units as follows:
- Volkswagen MFD2 / RNS 2
- Volkswagen RNS 510
- Volkswagen RNS 315
- Skoda Columbus
- Skoda Amundsen+
- Audi RNS E (A3 8P, A4 8E, TT 8J)
- Audi RNS E (R8)
- Skoda Nexus 16:9
- Seat Navigation 16:9
- Lamborghini Gallardo
- NOTE - Regarding Audi vehicles not suitable for RNS-E head unit from 2010 model year (part number ... ... 193) - coming soon
- NOTE VW T5 GP (from 2010) - For vehicles with OPS on the BACK (optical parking system on the back) the OPS function get lost - no limitations for vehicles with OPS on the BACK and FRONT
- Easy installation due to automatic head unit detection
- Auto switch to rear view camera by choosing the rear gear*
Specifications - Number Plate
- CCD-chip
- Board lens - 2mm
- Effective pixel - 510x492
- Resolution in lines - 380 lines
- Field frequency - 60 Hz
- Minimum illumination - 1Lux / F1.2
- Viewing angle - 170°
- White balance - Auto
- Gain control - Auto
- Synchronisation - Auto
- Working temp - 10°C bis +46°C
- Voltage - 12 Volt DC
- Power Input - 50mA
- Dimensions - 158 x 530mm
- Safety class system after DIN - IP66
Specifications - Interface
| Power supply | 12 Volt (10 - 15 Volt) |
| Power input | 170 - 190 mA |
| Standby current | 4 - 6 mA |
| Dimensions in mm | 99 x 96.5 x 23 |
| Approval | E13 10R-02-9578 |

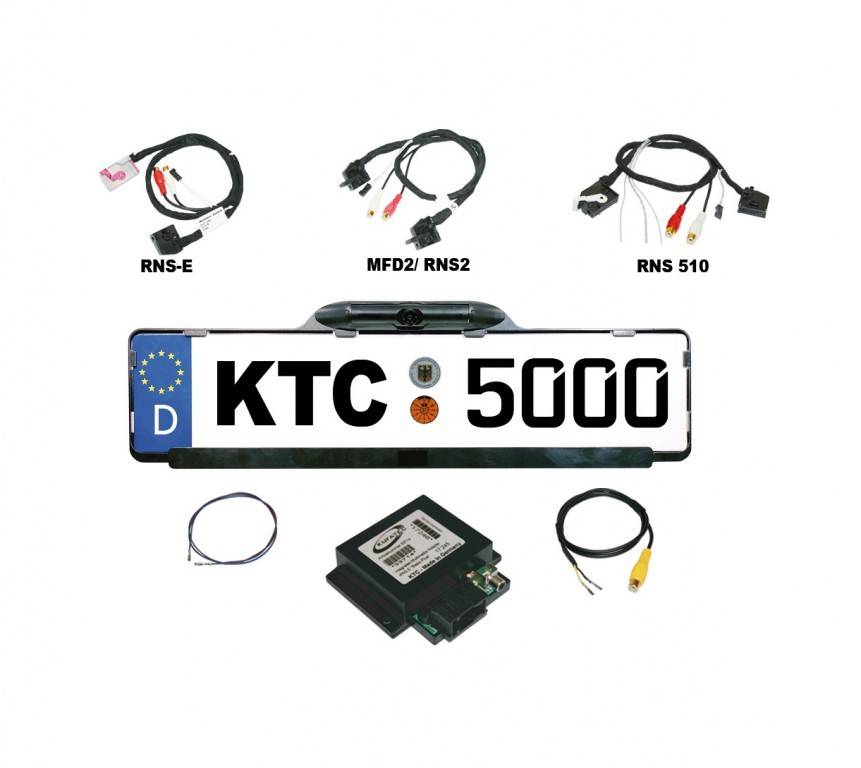

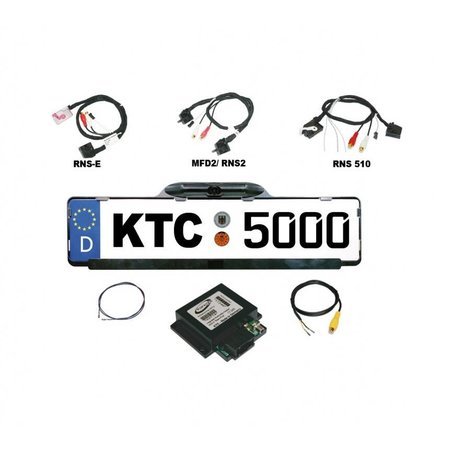

Scope of delivery:
- RVC Interface
- Number plate incl. camera
- Wiring
- Video loom
- Auto switch loom (only for Audi A3 8P, A4 8E, TT 8J RNS-E / VW MFD 2, RNS 2)
Notes:
- * In case of head unit RNS-E the auto switch is limited to Audi A3 8P, A4 8E, TT 8J.
- Fitting into vehicles with factory fitted TV only by request
