Audi

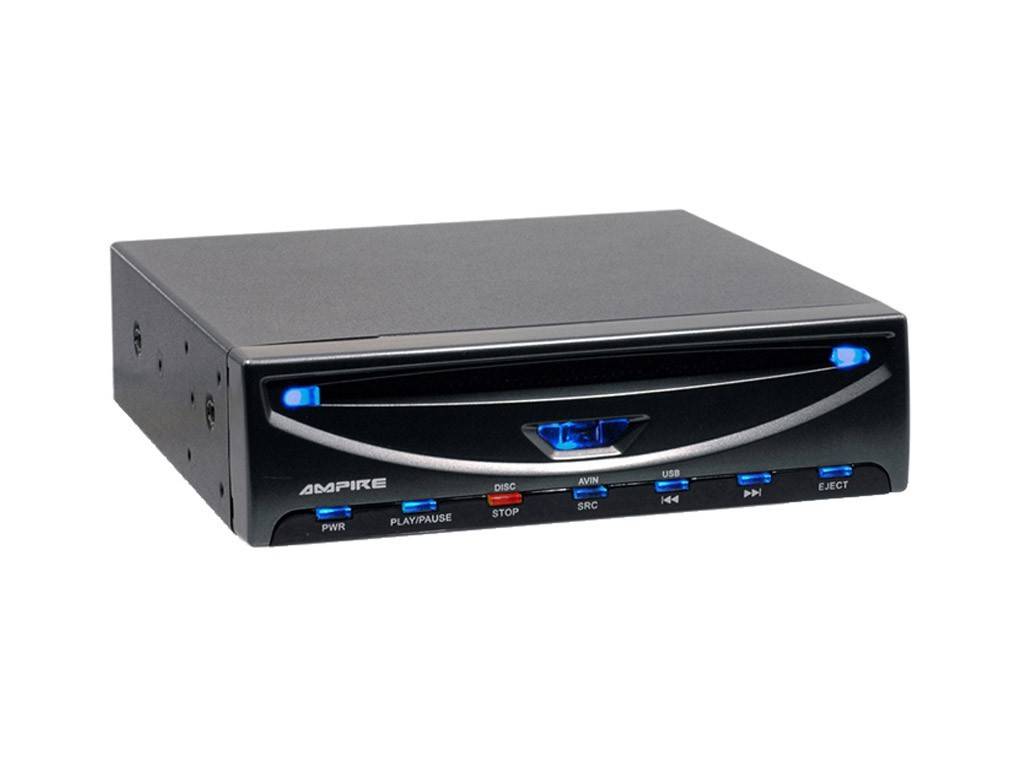

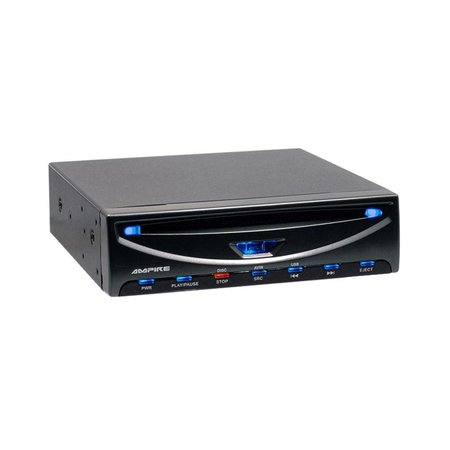

DVD player with USB interface (3/4 DIN) DVX-104
The new DVX-104 is one of the best multimedia players on the market. The integrated Disc player accepts DVDs and CDs. They can be connected with up to 1 TB in addition to USB sticks with up to 32 GB or hard drives.
We offer all necessary installation hardware and a mounting kit with DIN of course. The DVX-104 can be installed at a mounting angle of 0-30°. The shapely infrared remote control and an external IR receiver also allow a hidden installation in the trunk.
FILE FORMATS DISC DRIVE
- DVD, USB, SVCD, MVCD, AAC, ASF, VCD1.0 and 2.0, MPEG4, WMA, CD-DA, MP3, JPEG
USB CONNECTION
- Supports up to 32 GB USB sticks and hard drives up to 1 TB (FAT32 formatted)
MATERIAL
- Dolby Digital Audio Player
- subtitle
- Last position memory in disc mode (not in AVI or MPEG4)
- Last position memory in USB mode (not with AVI and MPEG4)
- Video signal 1Vp -p
- Audio signal 6Vss (2.1 V RMS)
- blue night design
- German screen operating menu
- Dual infrared receiver (front panel and external receivers)
CONNECTIONS
- 1 AV input (RCA)
- 1 AV output (RCA)
- 1 Coaxial digital output (RCA)
- 1 USB port
- 1 infrared input for ext. IR receiver
DIMENSIONS
- Product 160 x 44 x 165mm
- Installation depth 165mm
- Installation angle 0-30 Deg
- Weight 1.8 kg
PERFORMANCE
- Operating voltage 12 volts DC
- Power consumption 10.2 Watt max.
- Power consumption with the ignition off 0 watts (0.0 amperes)
DELIVERED
- DVD player (protected for transport)
- DIN mounting of accessories with frame
- connecting cable
- IR remote control
- IR receiver
- German / English manual
CERTIFICATION
- E8 10R -03 1242
- RoHS compliance
Battery ordinance
- Batteries do not belong in the household waste.
- The Battery Law applies in accordance with paragraph 1, sentence 1 2 Battery Law for batteries incorporated in other products or attached to other products. As a consumer you are legally obliged to return used batteries. You can dispose of your old batteries at public collection points in your municipality or anywhere else where batteries of this type are sold. You can return your batteries in the shipment free of charge. If you want to take advantage of the last option, do not hesitate to send your old batteries to our address (freight collect shipments will be refused).
These characters with harmful substances batteries
- Pb = battery / battery contains lead
- CD = battery / battery contains cadmium
- Hg = battery / accumulator contains mercury
IMPORTANT ANNOUNCEMENT
- Before using the DVX-104, remove the marked transportation safety screws. Otherwise the device may be damaged.
0 stars based on 0 reviews.
Add your review
