Audi

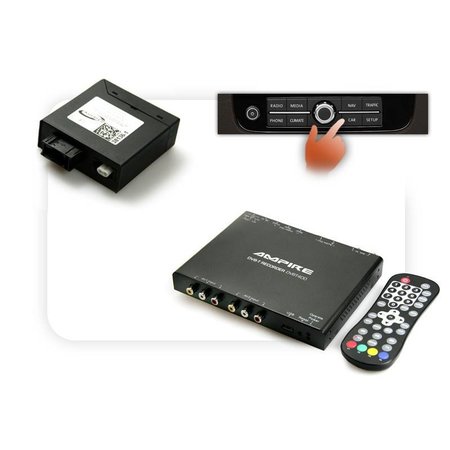

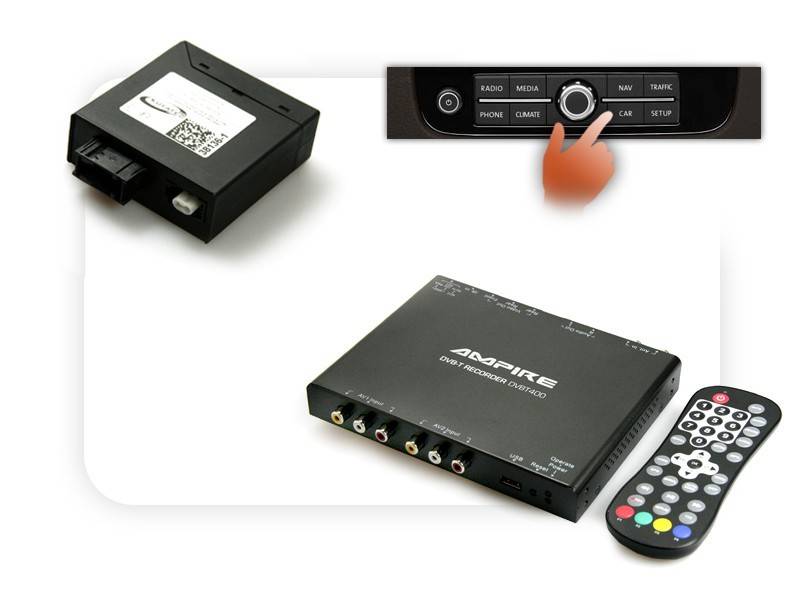

DVBT400 + Multimedia Adapter LWL - w/ OEM Control - RNS 850
- Multimedia bundle including award winning DVBT 400-3G as well as multimedia adapter LWL version "Plus"
- Connecting a DVB-T receiver to the infotainment system of the vehicle
- Suitable for VW Touareg 7P with RNS 850 navigation
- Suitable for vehicles without factory fitted TV. Not suitable for vehicles with factory fitted TV or retrofitted Multimedia Adapter
- Watching DVBT on the factory fitted screen
- Device Operation through the factory fitted infotainment system - No need to use the IR remote eye of the multimedia device
Features - Interface
- E13 certification - 10R-03-11024
- Signal processing - PAL
- TV - Tuner - Emulation
- 1 Audio + Video Input
- 1 Video input
Features - DVB-T
-
Automotive DVB-T Diversity receiver (dual)
-
DVB-T within Europe
-
Record TV through USB connection
-
AFS automatic frequence switching
-
MP3 music - MPEG4 / DIVX video through USB-connection
-
Multi language menus
-
Compact dimensions for perfect fitting
-
CE & RoHS Norm, E-permission
-
Licenced for DVBT and MPEG
Connections
- A/V input: 2x (Audio L/R & Video)
- A/V output: 3x Video, 1x Stereo Audio L/R
- USB-connection
- Aerial input 2x
- Infrared eye input
- Reset button
Technical details
- ETS 300 744 DVB-T Norm
- Video/Audio Decoder: MPEG-II
- Frequence: 170~230MHz (VHF)+ 470~862MHz (UHF)
- antenna impedance: 75 Ohm
- Chanal band width: 6/7/8MHz
- Supplies active as well as passive DVBT-antennas
- 2x A/V input for external sources (DVD ... )
- USB supplied audio format: *.mp3; *.wav
- USB supplied video format: *.mpg; *.dat; *.vob;
*.avi with MPEG4 ASP, XviD, DivX 4.0; DivX 5.0; DivX 6.0 compression.
(Note: video files which ends on *.divx and*.xvid has to be renamed to *.avi) - USB supplied picture format: *.jpg; *.bmp, *.gif
- Dimensions: 17.5cm x 13cm x 2cm
- Weight: 580g
- Voltage: 12~24V DC
- Power supply: 500mA
- Consumtion: 3.3 Watt
- TV system: Auto/PAL/NTSC
- Screen format 4:3/16:9
- Sound Equalizer: Standard/Classic/Rock/Jazz/Pop
- Sound Effekt: Conzert/Chirch/Passive/Live
- OSD Lanuage: Englisch/French/German/Italian/Spanisch/ Dutch and a lot more
Scope of delivery
- Multimedia adapter LWL "Plus"
- Specific wiring
- Control line
- Ampire DVBT400-3G
- 2 active antennas
- Remote Control
Note
- On request the installation is possible by our internal installation service
