CAN-Bus Interface - VW RNS-510/MFD3 CAN TP 1.6-2.0 + TV-Free ISO
- Specific Interface in order to retrofit the VW navigation unit RNS 510 with touch screen in vehicles with CAN Bus 1.6
- Suitable for vehicles with ISO connectors
- Touareg before facelift 2008 - GP
- T5
- TV-free option is already included within the interface, you won't need a seperate interface
- Current supported features of this interface:
- Multifunctional Steering wheel (Volume Control)
- Ignition
- Illumination
- Reverse gear
- Speed signal
- DSP Sound (PR-9VE)
- Clock and Date synchronisation (if supported by car)
- TV-Tuner / Multimediaadapter support
- MFA support for
- Radioinformation
- CD
- HDD/SD-Card
- TV
- Language-Settings will be transferred to RNS-510
Technical details
| Power supply | 12Volt (8 - 15 Volt) |
| Power input | 90 mA |
| Standby current |
<40 mA |
| dimensions in mm |
54 x 45 x 22 |
| Permission |
E13 10R-02-3950 |

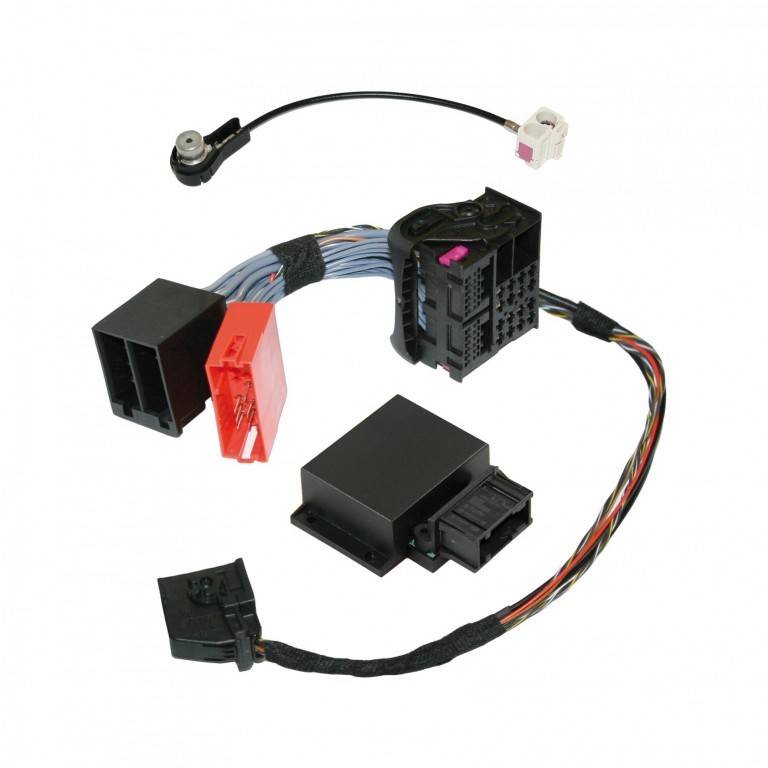

Scope of delivery
- CAN Bus Interface incl. TV-free
- Antenna adapter
Note
- Not suitable for vehicles with factory fitted rear view cam (special solution on request)
- For Installation CAN Bus Interface + IMA Multimedia Adapter only suitable for head units RNS 510 until software index 1202
