Audi
Audio Interface for Audi MMI 2G High - iPod / iPhone 3, 4, 5 and 6 / USB / AUX / A2DP new AMI / Adapter Iphone 5 and 6
Music Interface for Audi MMI 2G - the latest generation (3rd) - 3 in 1
Our all-new Music Interface combines all customer requirements in a single box, replacing a number of earlier versions. It allows the connection of different sources to the Audi MMI 2G and thus transforms it into a Multimedia Audio Station.
Music playback is supported by:
- USB Stick (up to 32GB)
- IPod / iPad / iPhone *
- MP3 players and phones via 3.5mm jack (AUX) **
- Via Bluetooth A2DP audio streaming (optional) **
All iPhone 4 4S, 5 un 6 with adapter, which costs extra 29,99
The music interface is installed in the glove compartment, which includes a recess for the cable socket on the rear (using a Dremel). A quality control in the MMI is not necessary after the installation of our kit! Included is a plug and play fiber optic connector cable, which is tapped CD changer. The power is tapped in the fuse box on the right side of the control panel, the cable is already pre-and this is only inserted the rear. A backup is of course part of the delivery. The ground connection is made through the eyelet on the body of the soil (easy using existing or new ground point screw).
Read more about our product
Full control via the Audi MMI (for Apple and USB media) **
Operation via multifunction steering wheel (if available) **
Transmission through all the speakers in the car (even in DSP, Bose and H & K)
Displays the title information on your HMI screen **
Features of Music Interface: Playlist, title, artist, podcasts and audio books will appear on the MMI display, which forward and backward scrolling functions and may be on the Audi MMI / MFL run. The battery is charged while the iPod / iPhone is connected. Compatible with all new Apple devices *
Offer valid for
Audi A4 8K (all models with MMI 2G High)
Audi A5 8T (all models with MMI 2G High)
Audi A6 4F (all models with MMI 2G High)
Audi A8 4E (all models with MMI 2G High)
Audi Q7 7L (all models with MMI 2G High)
Distinguishing MMI 2G High
Color (not suitable for black and white)
Navirechner in the trunk (for navigation)
no SD card slots / no SIM slot
delivery
4G interface for MMI 2G

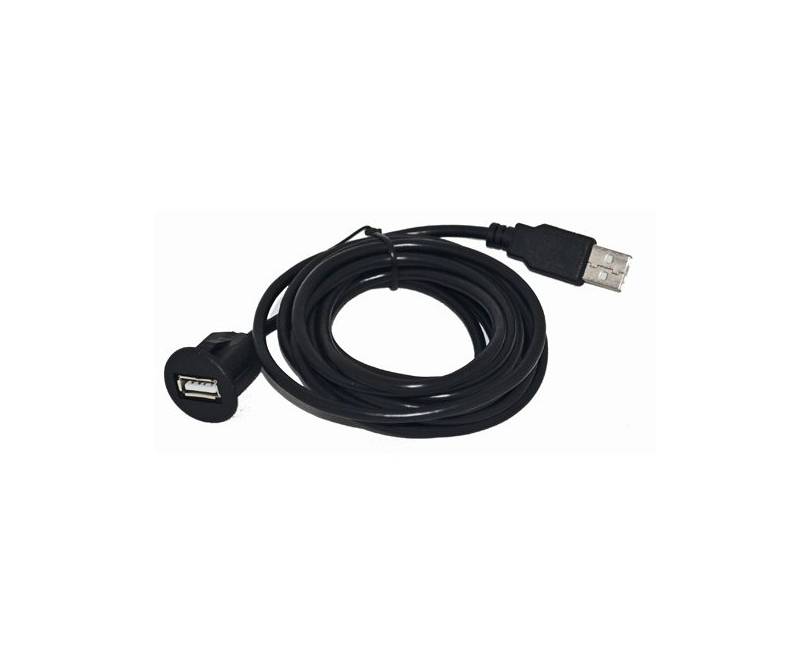

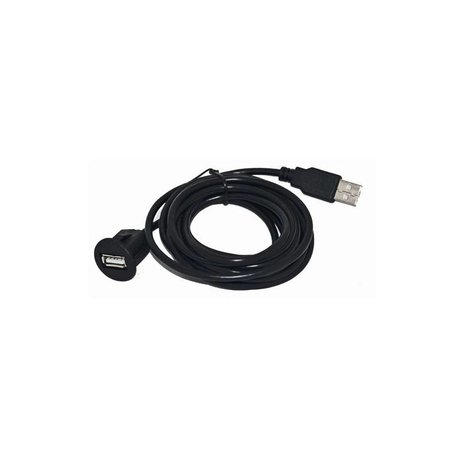

External USB built-in socket
iPod connection cable 30 pin
AUX-IN connection
No A2DP Bluetooth module (not included)
Quick Guide
cable
sources switcher
Adapter Iphone 5 and 6
Notes
There are USB drive supports up to 32GB
Genuine CD changer can be used
Not suitable for vehicles with two CD changers ***
Not suitable for cars with Audi Music Interface ***
* Apple products with Lightning connector genuine Apple adapter attached
** No control over the MMI with AUX / A2DP (it is served on the connected equipment)
** No title display on the MMI with AUX / A2DP (it is read on the connected device)
Please note that the MMI a software version of at least. SW must 3450th To request the software, press the button "Setup? +? Return" in succession and hold. Following the publication of the assembly list MMI to select the controller "interface box" and read version of the software. The menu is left on the "Return" button.
Update AMI4G Software Upgrade 01:01
