Audio Interface for Audi MMI 2G High - iPod / iPhone 3, 4, 5, 6 / USB / AUX / Bluetooth A2DP AMI
Music Interface for Audi MMI 2G - latest generation (4th) - 4 in 1
Our all-new Music Interface combines all customer requirements in a single box, replacing several previous versions. It allows the connection of various sources to the Audi MMI 2G and thus transforms it into a Multimedia Audio Station.
Music playback is supported on:
- USB Stick (up to 32GB)
- IPod / iPad / iPhone *
- MP3 players and phones via 3.5 mm jack (AUX) **
- Via A2DP Bluetooth Audio Stream
all Iphone4 4S, 5 un 6 with adapter, which costs extra 29,99
The music interface is installed in the glove compartment, this is for the cable bushing a cutout incorporated at the rear (eg with a Dremel). A quality control in the MMI is not required after the installation of our set! Included is a plug and play fiber optic connector cable which the CD changer is tapped. Power is tapped at the fuse box to the right of the control panel, the connecting cable is already pre-and this is inserted from the rear only. A backup is of course part of the delivery. The ground connection is made by means of eyelet to body ground (simply using the existing or new ground point screw).
Find out more about our product
Complete operation via the Audi MMI (for Apple and USB media) **
Operation via multifunction steering wheel (if fitted) **
Transmission through all car speakers (even in DSP, Bose and H & K)
Display the title information is at your MMI screen **
Features of Music Interface: Playlist, title, artist, podcasts and audiobooks are displayed on the MMI display, which features forward and backward scrolling and can be on the Audi MMI / MFL run. The battery is charged while the iPod / iPhone connected. Compatible with all new Apple devices *
Offer valid for
Audi A4 8K (all models with MMI 2G High)
Audi A5 8T (all models with MMI 2G High)
Audi A6 4F (all models with MMI 2G High)
Audi A8 4E (all models with MMI 2G High)
Audi Q7 7L (all models with MMI 2G High)
Distinguishing MMI 2G High
Color display (not suitable for monochrome)
Navirechner in the trunk (for navigation)
no SD card slots / no SIM slot

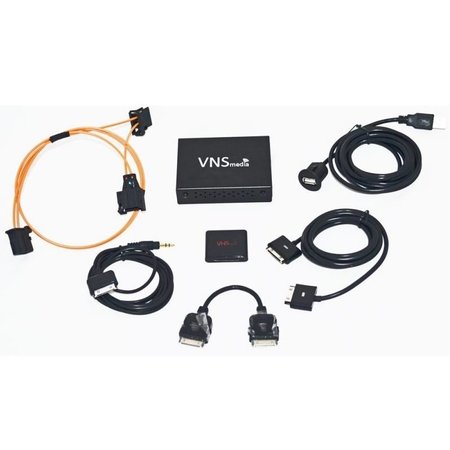

delivery
4G interface for MMI 2G
external USB built-in socket
iPod connection cable 30 pin
AUX-IN connection cable
A2DP Bluetooth module
quick start Guide
connection cable
Sources switcher
Notes
There are USB Disk supports up to 32 GB
Genuine CD changer can be used
Not suitable for vehicles with 2 CD changers ***
Not suitable for vehicles with Audi Music Interface ***

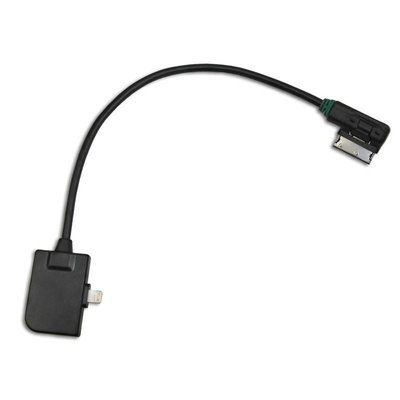

* Apple products with Lightning connector only by genuine Apple adapter coupled
** No control over the MMI with AUX / A2DP (it is served on the connected equipment)
** No title display on the MMI with AUX / A2DP (it is read on the connected device)
Please note that the MMI a software version of at least. SW must 3450th To query the software version, press the keys "Setup? +? Return" in succession and hold. After publication of the MMI assembly list out the controller "interface box" select and read software version. The menu is left on the "Return" button.
Update AMI4G Software Upgrade 1:01
