Audio Interface A2DP for Audi Concert Symphony Bluetooth AUX AMI streaming
Audio interface for Audi Concert Symphony Bluetooth AUX AMI
Our completely newly developed music interface combines all customer requirements in just one box and thus replaces various previous versions.
It allows you to connect different sources to the Audi MMI 2G and thus transforms it into a multimedia audio station.
Music playback is supported via:
via bluetooth everything
about AUX chinch everything
Suitable:
Radio Concert, Symphony
A4 8K
A5 8T
Q5 8R
The music interface is installed in the glove compartment, for this purpose a cutout has to be made on the back for the cable feed-through.
Activation in the MMI is not required after our set has been installed
The scope of delivery includes a plug & play fiber optic connection cable which is tapped on the CD changer.
The power is tapped on the fuse box to the right of the control panel, the connection cable is already pre-assembled for this and is only plugged in from the rear.
A fuse is of course included in the scope of delivery.
The ground connection is made by means of a ring eyelet on the body ground (simply screw onto the existing or new ground point).
Features of the music interface:
Playlist,
Title-,
Artist,

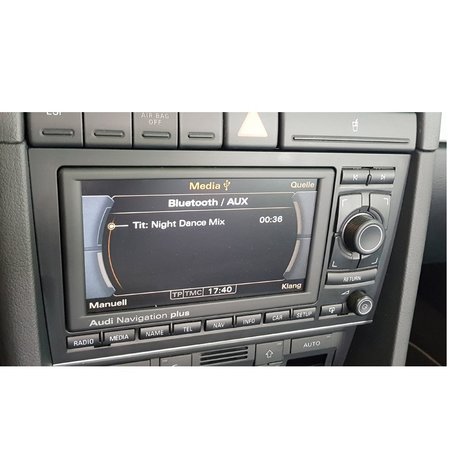

Podcasts and audiobooks are shown on the MMI display, the forward and backward functions as well as scrolling can be carried out via the Audi MMI / MFL.
For coupling with our adapter you need code: 2831, 1234 or 0000
scope of delivery
4G Interface BT for Audi Concert and Symphony
no radio included.
