Audio aux output 6x out interface complete set for Audi MMI 2G systems
Complete set audio 6x Out for MOST based MMI systems.
The audio signal is filtered from the MOST bus (fiber optic cable) and made available as a standard stereo signal.
Ideal for driving an aftermarket amplifier.
6x channel OUT: FR, FL, RR, RL
For:
MMI 2G:
A4 8K, A5 8T, A6 4F, A8 4E, Q7 4L

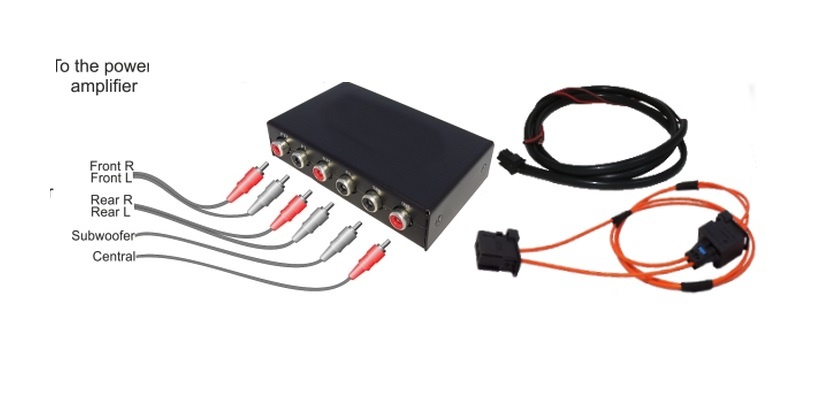

Scope of delivery:
1 x interface
1 x light wave cable set
1 x cable set for power supply
The pin assignment is on the cables, so it is very easy to install.
black - ground
red - 12volt plus
red / green - 12volt + output OUT up to 100mA
